UL Flame Chamber
UL94
Horizontal Burning Test; UL 94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210) Vertical Burning Test: UL 94 V-0, V-1, or V-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210) Large inside volume of 1.0m3 Fitted with an interior light and exhaust fan to enable simple evacuation of combustion products Two access ports enabling easy entry to the chamber for movement of the burner and specimen -
FMVSS Flame Chamber
FMVSS
The FMVSS 302 specifies the burn resistance requirements for materials used in the occupant compartments of motor vehicles Fully compliant to FMVSS 302 and ISO 3795 requirements Stainless Steel combustion chamber -
Oxygen Index
Oxygen Index
Conforms to ASTM D 2863, BS ISO 4589-2, NES 714 New Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels Compact unit for efficient use inside a laboratory hood, with ventilation Automatic flow control gives oxygen level adjustment by turning one single valve Digital display of oxygen percentage in atmosphere during test (no calculations needed) Sample holders for both rigid and flexible samples supplied -

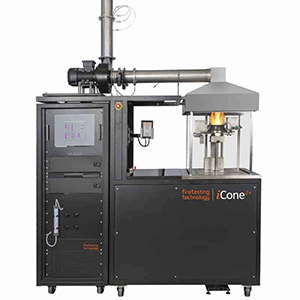

Cone Calorimeter
Cone Calorimeter
Conforms to ISO 5660; ASTM E1354; ASTM E1474; ASTM E1740; ASTM F1550; ASTM D6113; CAN ULC 135; BS 476 Part 15 Directly Measured Properties: Heat Release Rate, Time to Ignition, Mass Loss Rate, Smoke Release Rate, Effective Heat of Combusion, Rate of Release of Combusion Carbon Dioxide and Carbon Monoxide – NDIR gas analysers optionally available Programmable heat flux exposure regimes. Up to 10 consecutive heat flux ramping or holding phases can be programmed 5.5" colour touchscreen test control panel, adjacent to specimen, supplements principal computer control Automatic calibration by ConeCalc Software FTIR Toxicity Test System - an advanced gas analyser optionally available
-
Specimen Punch
QC-603A, QC-603C
This product is able to coordinate with various cutters to cut them into samples or into standard shape specimen In various shapes as dumbbell, rectangular, circle, or etc. And also have Manual Punch and Pneumatic Punch be option -
Hot Forming Press Machine
QC-601A, QC-601T, QC-602A
Put the plastic (or rubber) raw material into the casting mold between the upper and lower heating plate, implement pressure and temperature, to form the material into a standard shape to be a sample to serve for test And also have Manual Forming Machine and Electricity Forming Machine be option -
Drop Ball Impact Tester
QC-637
Dropping Impact Tester used to test the impact endurance of brittle material like: Plastic, Ceramic, Acrylic, and etc Conforms to JIS A5403 and JIS K6745 -
Drop Dart Impact Tester
QC-633
This machines according to ASTM D1709-75 standard to designed And also meet testing method A & B. It is an A & B dual function of testing machine The hemisphere of dart head will drop down directly from specific height to impact the specimen which is testing impact of resistance
